サービス・製品/SERVICE・PRODUCT
-

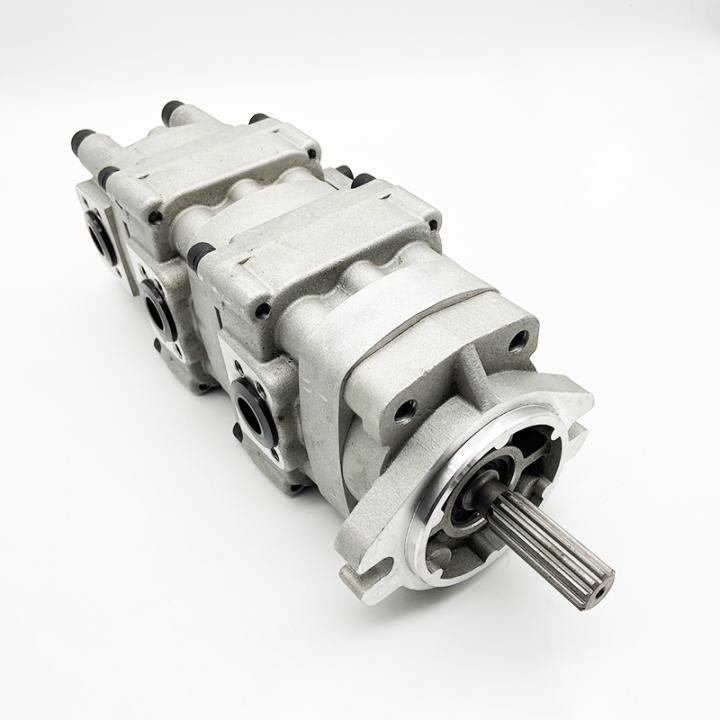

GEAR PUMP
This pump transfers oils such as lubricating oil. It transfers oil from drums and tanks.
-

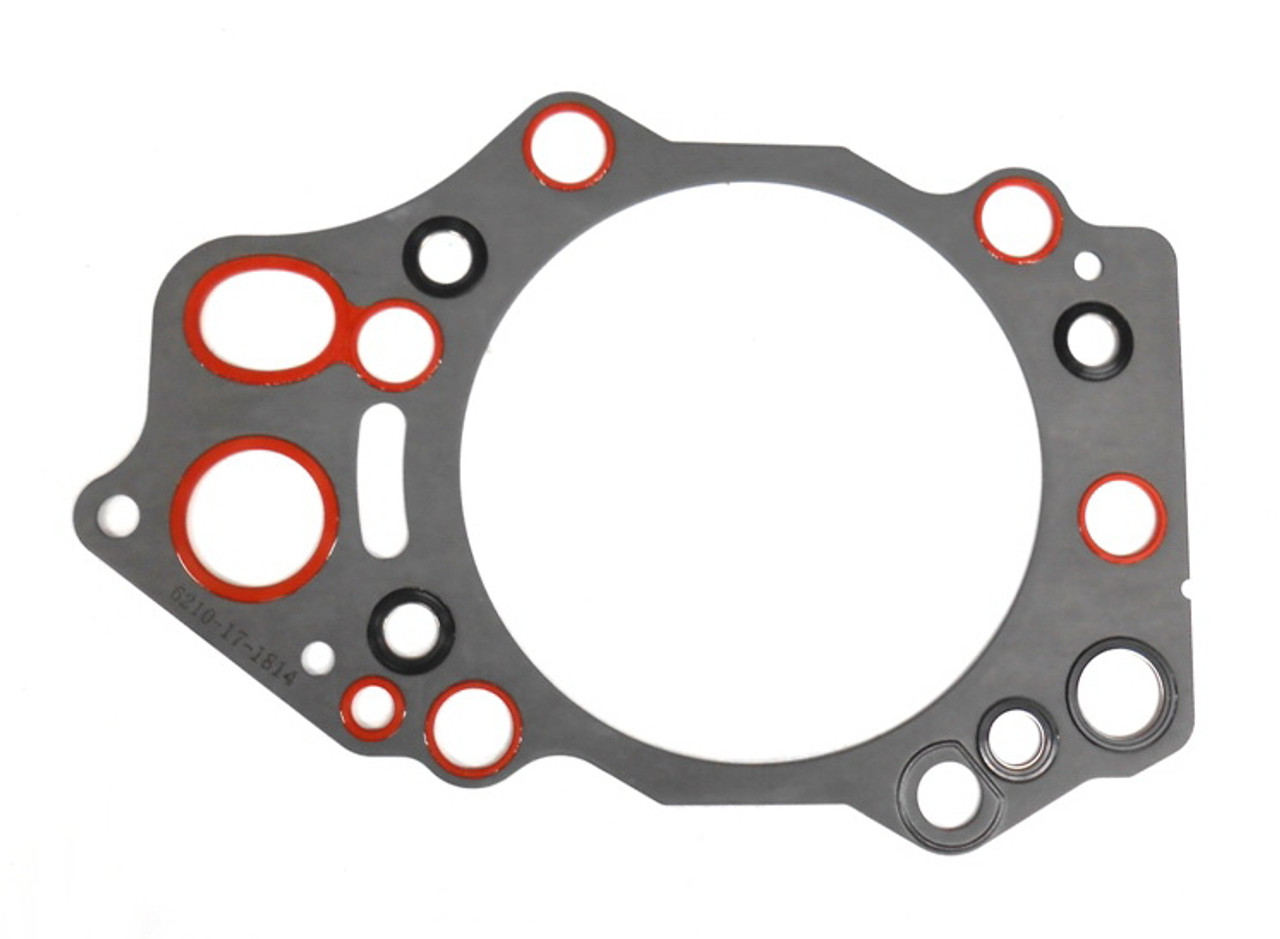

GASKET
Gaskets are industrial sealing materials used in stationary parts such as pipe flanges to fill gaps. They play a role in preventing fluid leakage from joints and preventing the intrusion of foreign matter from the outside.
-

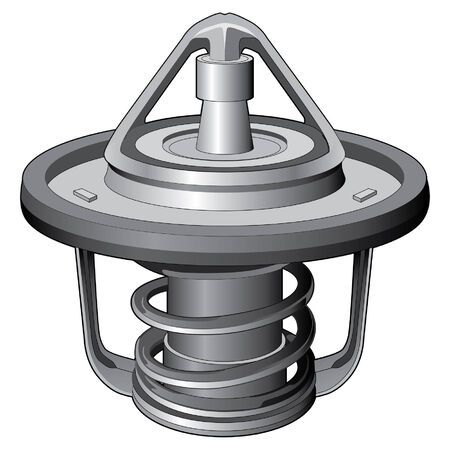

THERMOSTAT
The thermostat detects the temperature of the coolant circulating through the engine and sends the coolant to the radiator appropriately according to the engine's condition, regulating the water temperature.
-

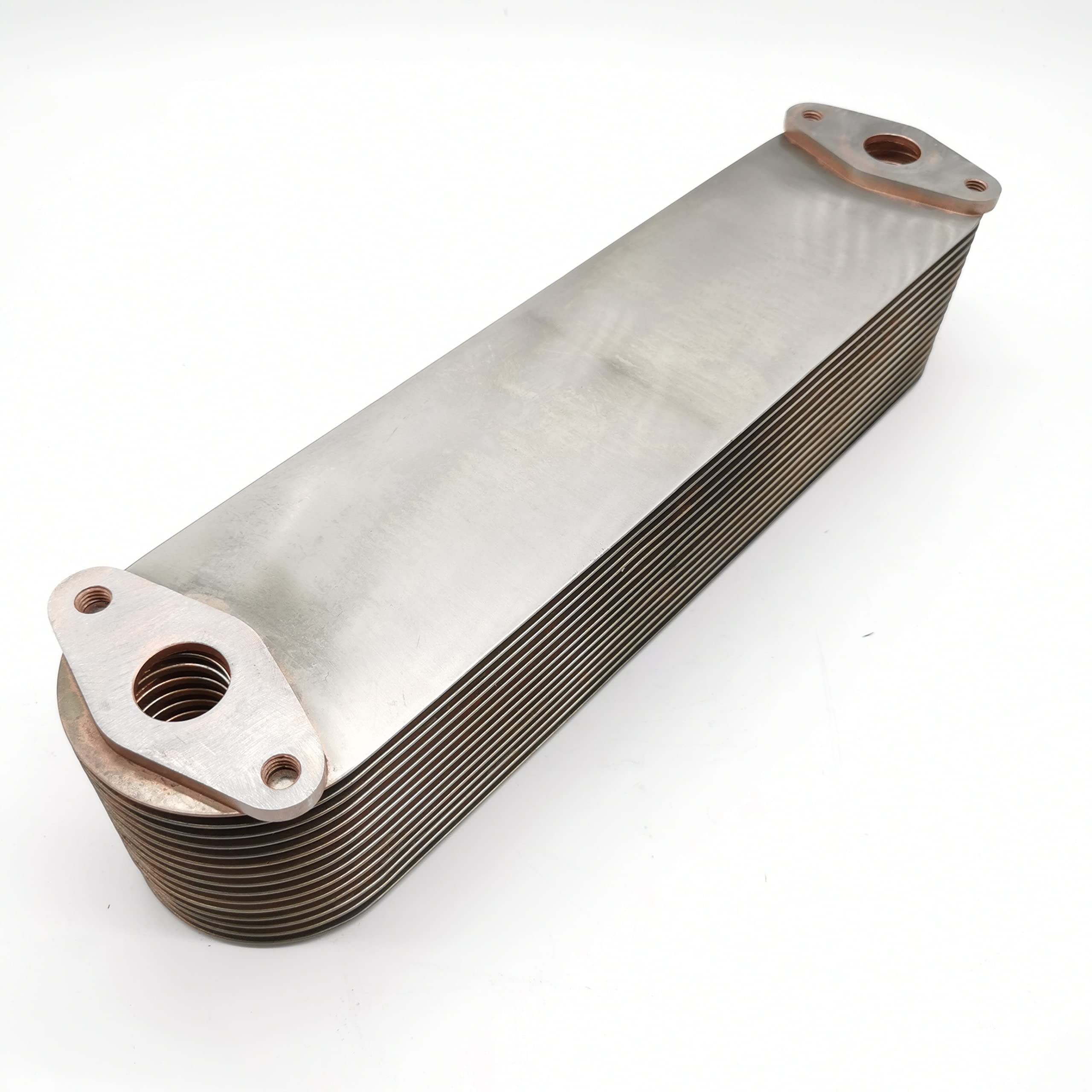

OIL COLER
An oil cooler is a device for cooling engine oil and gear oil. It is attached to the oil filter. Since the lubricating oil in the engine and gearbox becomes very hot, an oil cooler is installed to cool the oil before it is recirculated.
-

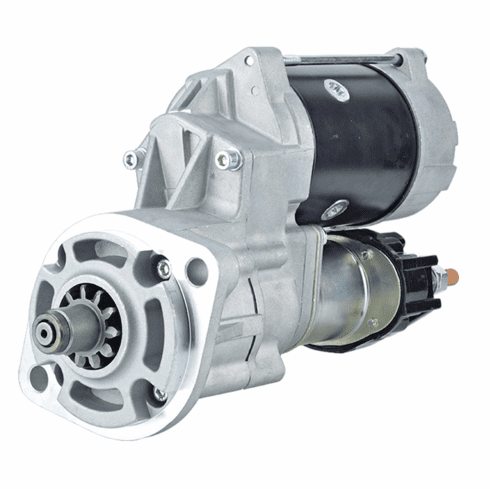

STARTER
A starting device that is used to start the engine and then maintain stable operation until the engine reaches a state of independent operation.
-
ALTERNATOR
An alternator is a part that generates electricity for use in automobiles. The role of an alternator is to generate electricity, by transmitting the rotation of the engine to the alternator to generate electricity.
-
LINER
A cylinder liner is a cylindrical part that is fitted into an engine block to form a cylinder, and is one of the important functional parts that make up the inside of an engine. In recent years, engine blocks have been changed from cast iron to aluminum alloys in order to reduce the weight of engines, but cast iron cylinder liners are still mainly used as the sliding surface on the inner circumference of the cylinder.
-
RING PISTON
A piston ring is a ring that is fitted in the groove on the outer circumference of the piston in a reciprocating engine. Its role is to improve the operating efficiency of a vehicle engine by maintaining an airtight seal between the piston and the cylinder (the tube in which the piston reciprocates) and by transferring heat from the piston to the cylinder.
-

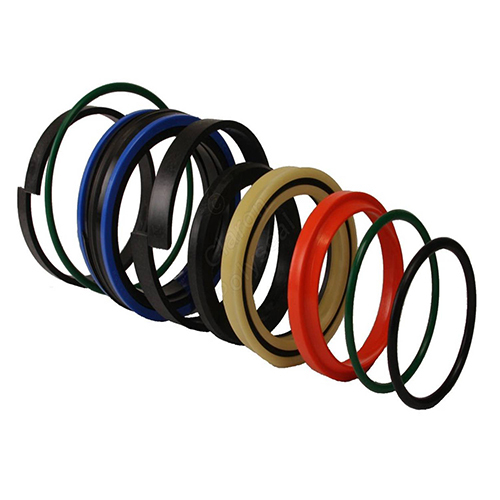

SEAL KIT
Seal kits are mainly used in hydraulic cylinders of backhoes, tire shovels, forklifts, etc., and are a set of gaskets to prevent oil leaks and the intrusion of debris. Seal kits are very susceptible to deterioration depending on the operating conditions and usage environment of the machine, and are parts that need to be replaced regularly, just like oil changes.
-
ENGINE VALVE
An engine valve is one of the components that make up an internal combustion engine; it is a valve that opens and closes the inlet that takes in air and mixed gas, and the outlet that discharges exhaust gas.
-

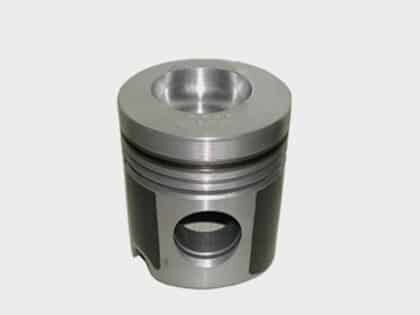

PISTON
The main part of a reciprocating machine that receives pressure from a fluid or compresses the fluid while reciprocating inside a cylinder, transferring energy between the fluid and the reciprocating machine. Most of them are in the shape of a disk or a relatively low cylinder.
-

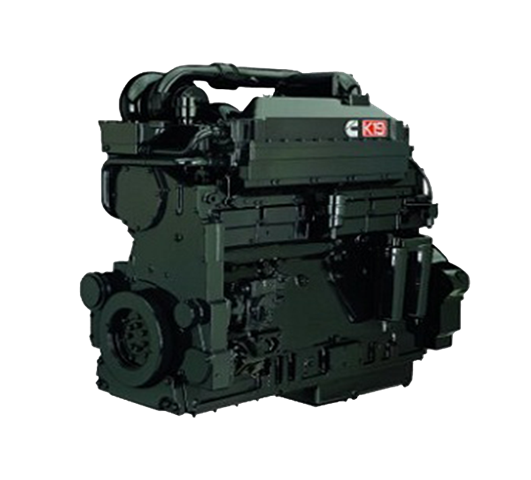

KTTA19 for Mining
Engine Specifications Specification Details Engine Type Inline 6 (6-cylinder in-line) Displacement 1156 cu in (19 liters) Advertised Horsepower 450-700 hp (336-522 kW) Peak Torque 1125-2014 lb-ft (1526-2731 N•m) Bore and Stroke 6.25 in × 6.25 in (159 mm × 159 mm) Aspiration Turbocharged and Aftercooled Oil System Capacity 80 U.S. qt (76 liters) Coolant Capacity 44 U.S. qt (42 liters) Length 62.0 in (1574 mm) Width 31.7-38.4 in (805-975 mm) Height 54.0-64.5 in (1371-1638 mm) Wet Weight 6000-6170 lb (2722-2799 kg)
Overview
This engine is a large-displacement inline 6, designed for high output and substantial torque, making it suitable for industrial machinery, high-performance vehicles, or specialized equipment. The combination of turbocharging and aftercooling ensures efficient air intake and cooling, enabling the engine to deliver exceptional power and reliability. With a displacement of 19 liters and peak torque of up to 2014 lb-ft, this engine is designed to handle extreme loads and high-performance requirements. Key Features High Power and Torque: Delivers between 450-700 horsepower and up to 2014 lb-ft of torque, ensuring excellent towing capability and acceleration. Large Displacement: A massive 19-liter displacement provides improved efficiency and durability under high stress. Turbocharging and Aftercooling: Boosts engine performance by increasing air intake pressure and cooling the air, optimizing overall engine efficiency. Potential Applications Heavy-duty Industrial Equipment Heavy Trucks and Transport Vehicles High-Performance Race Cars or Performance Vehicles -
KTA50 for Mining
K50 Engine Specifications Specification Details Engine Type Vee 16 (16-cylinder V configuration) Displacement 3,060 in³ (50 liters) Advertised Horsepower 1600-1800 hp (1194-1343 kW) Peak Torque 4640-5225 lb-ft (6291-7084 N•m) Bore and Stroke 159 mm × 159 mm Aspiration Turbocharged and Charge Air Cooled Oil System Capacity 236 U.S. qt (223 liters) Coolant Capacity 170 U.S. qt (161 liters) Length 110 in (2794 mm) Width 56 in (1422 mm) Height 74.1 in (1882 mm) Wet Weight 11,670 lb (5293 kg)
Overview
The K50 is a massive Vee 16 engine, known for its extraordinary power and torque. With a displacement of 50 liters and an output range of 1600-1800 horsepower, this engine is designed for high-performance industrial and marine applications where extreme reliability, durability, and raw power are required. The engine’s Vee configuration allows for smooth operation, while turbocharging and charge air cooling ensure high efficiency and performance even under demanding conditions. Key Features High Power Output: Delivers between 1600 and 1800 horsepower (1194-1343 kW), making it suitable for heavy-duty applications like large marine vessels or power generation. Impressive Torque Range: Produces 4640 to 5225 lb-ft (6291-7084 N•m) of torque, ideal for high-torque applications such as heavy machinery or large trucks. Turbocharging and Charge Air Cooling: These systems ensure optimal air intake, improving performance and efficiency in demanding environments. Massive Capacity: The engine has a large oil and coolant capacity (236 U.S. qt and 170 U.S. qt, respectively), essential for maintaining operating temperature and performance during prolonged use. Physical Dimensions Length: 110 in (2794 mm) Width: 56 in (1422 mm) Height: 74.1 in (1882 mm) These dimensions highlight that the K50 engine is a large, heavy-duty unit designed for industrial or marine installations where space is less of a constraint. Applications Marine Engines: Suitable for use in large ships or offshore rigs where high power and torque are required for propulsion and operation. Heavy Machinery: Can power massive equipment such as mining trucks, bulldozers, or other industrial vehicles. Power Generation: Due to its high output and reliability, this engine could be used in industrial power plants or emergency generators. -

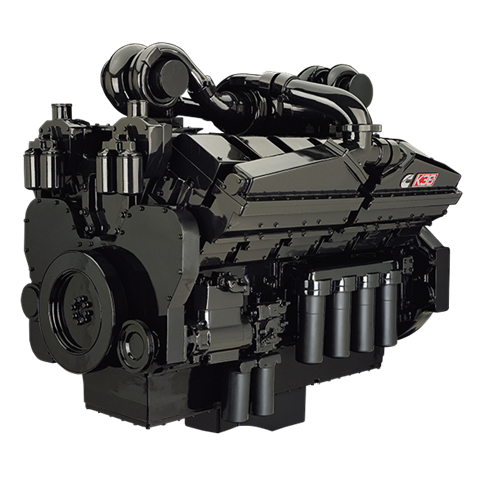

KTA38 for Mining
Vee 12 Engine Specifications Specification Details Engine Type Vee 12 (12-cylinder V configuration) Displacement 2300 cu in (38 liters) Advertised Horsepower 925-1350 hp (690-1007 kW) Peak Torque 3020-3485 lb-ft (4095-4725 N•m) Bore and Stroke 6.25 in × 6.25 in (159 mm × 159 mm) Aspiration Turbocharged and Aftercooled Oil System Capacity 142.4 U.S. qt (135 liters) Coolant Capacity 116 U.S. qt (110 liters) Length 90 in (2189 mm) Width 54 in (1372 mm) Height 69 in (1631 mm) Wet Weight 9250 lb (4196 kg)
Overview
The Vee 12 engine is a powerful, high-torque unit designed for demanding applications that require substantial power output and reliability. With a displacement of 38 liters and a horsepower range of 925-1350 hp, this engine is well-suited for heavy-duty machinery, large trucks, industrial equipment, or even marine applications. The turbocharged and aftercooled setup ensures optimal air intake and cooling efficiency, allowing the engine to perform reliably under heavy loads. Key Features High Power Output: Delivers between 925 and 1350 horsepower (690-1007 kW), offering a broad power range for both heavy-duty and high-performance applications. Impressive Torque: With 3020 to 3485 lb-ft (4095-4725 N•m) of peak torque, this engine is capable of handling heavy workloads, including towing and hauling. Turbocharging and Aftercooling: These systems enhance engine performance by improving air intake pressure and ensuring efficient cooling, which is crucial for maintaining peak performance during extended use. Large Oil and Coolant Capacities: The engine has a large oil system capacity of 142.4 U.S. qt (135 liters) and coolant capacity of 116 U.S. qt (110 liters), essential for maintaining operational temperature and longevity. Physical Dimensions Length: 90 in (2189 mm) Width: 54 in (1372 mm) Height: 69 in (1631 mm) These dimensions indicate that this is a relatively compact but still large engine, capable of fitting into applications with space constraints, though it’s still designed for robust, high-powered operations. Applications Heavy-duty Trucks and Transportation: Suitable for use in large commercial vehicles or trucks that need a lot of horsepower and torque to handle loads and tough driving conditions. Industrial Equipment: Can be used in mining equipment, construction machinery, or other industrial applications requiring high power and torque. Marine Applications: The Vee 12 configuration, combined with turbocharging and aftercooling, makes it ideal for marine vessels that require reliable and high-output engines.
